Intermec PM42 e PM43, Peças de reposição e serviços

Honeywell Intermec PM42 e PM43
         Industrial barcode label printer
Impressoras de etiquetas, Peças de reposição e Serviços.

Instalação de Acessórios e Opcionais,
Assistência técnica credenciada Honeywell
Reabilitação de modulos eletrônicos e mecânicos.

A LSERVICE possui equipamentos semi-novos das mais variadas marcas e especificações.
Todos cuidadosamente revisados e testados em nossas instalações.

São mais de 20 anos de experiência a serviço de sua tranquilidade e confiabilidade.
Oferecemos garantia e suporte que transformam equipamentos semi-novos
em uma excelente opção de investimento.
Consulte nossas disponibilidades.

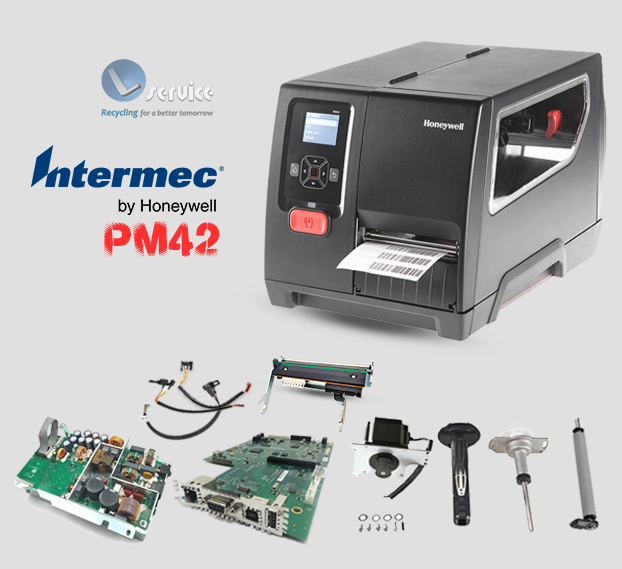

Honeywell Intermec PM42
234-032S-001 : Motherboard, Honeywell intermec PM42, PM43
234-050S-001 : Power Supply Board, Honeywell intermec PM42, PM43
710-118S-001 : Platen roller, Honeywell intermec PM42, PM43
PM42 Front Panel Assembly Part
51024892-001FRE  Front Panel, w/o PCBA, PM42
50124882-001FRE  BUTTON FEED
50124625-032FRE
50125473-001FRE  KEYPAD MEMBRANE PM42
50125130-001FRE
750124880-001FRE
50124625-002FRE
50124649-003FRE FRE, PCBA, MLB(MAIN LOGIC BOARD) 1 EA
50126706-001FRE FRE, ASSY, PRINTHEAD, 203DPI, PM42 1 EA
50126707-001FRE FRE, ASSY, PRINTHEAD, 300DPI, PM42 1 EA
50126708-001FRE FRE, ASSY, PRINTHEAD, 406DPI, PM42 1 EA
50125130-001FRE FRE, LCD, TFT, 2.36 INCH,480(RGB)*234 1 EA
50124887-001FRE FRE, BASE PLATE, PM42 1 EA
50124886-001FRE FRE, SPINE ASSY, PM42 1 EA
655-314-001FRE FRE, HANGER MEDIA 1 EA
50125626-001FRE FRE, GUIDE, EDGE, SMALL 1 EA
50126032-001FRE FRE, BOTTOM ASSEMBLY 1 EA
PM42 Spare Parts List
50125907-001FRE FRE, ASSY, MEDIA GUIDE BOTTOM 1 EA
50125908-001FRE FRE, ASSY, LSS, ADJUST, PM42 1 EA
50125904-001FRE FRE, ASSY, MEDIA GUIDE, TOP, PM42 1 EA
50125906-001FRE FRE, ASSY, DANCER 1 EA
50125901-001FRE FRE, ASSY, PLATEN ROLLER, PM42 1 EA
50125896-001FRE FRE, ASSY, PRESSURE ADJUST SUB, PM42 1 EA
50125897-001FRE FRE, ASSY,TPH SUB ASSY ASM 1 EA
50125631-001FRE FRE, PRESSURE ADJUST 1 EA
644-052-001FRE FRE, BAR CONNECTING 1 EA
50125623-001FRE FRE, HEAD LIFT LEVER, PM42 1 EA
650-829-001FRE FRE, SPRING PLATE 1-INCH CORE 1 EA
50125919-001FRE FRE, ASSY RIBBON REWIND MECH, PM42 1 EA
50125646-001FRE FRE, GEAR,49T,REWIND 1 EA
50125643-001FRE FRE, GEAR,34T,M1,PULLEY,32T,S3M 1 EA
50125645-001FRE FRE, GEAR,22T,M1 1 EA
655-323-002FRE FRE, TIMING BELT PULLEY.T54 W7 L162.S3M 1 EA
710-112-001FRE FRE, ASSY, STEPPER MOTOR, PM42 1 EA
50125903-001FRE FRE, ASSY, TENSION ROLLER, PM42 1 EA
50125621-001FRE FRE, DOOR, ACCESS 1 EA
50124890-001FRE FRE, COVER, EE, PM42 1 EA
50124891-001FRE FRE, ASSY, MEDIA DOOR, PM42 1 EA
50125920-001FRE FRE, RIBBON SUPPLY HUB, PM42 1 EA
50125922-001FRE FRE, ASSY, RIBBON ADJUST SUB, PM42 1 EA
50124875-001FRE FRE, WINDOW, MEDIA DOOR, PM42 1 EA
50125990-001FRE FRE, ASSY, RIBBON SENSOR, PM42 1 EA
50124625-022FRE FRE, ASSY, LOWER LSS, PM42 1 EA
50124892-001FRE FRE, ASSY, FRONT PANEL, COMPLETE, PM42 1 EA
50125473-001FRE FRE, KEYPAD MEMBRANE 1 EA
50124625-032FRE FRE, PCBA, UI FEED BUTTON, PM42 1 EA
50124882-001FRE FRE, BUTTON FEED 1 EA
5012990-001FRE FRE, ASSY, RIBBON SENSOR, PM42 1 EA
650-799-001FRE FRE, TEAR BAR 1 EA
814-055-008FRE FRE, SCREW MRT M4X8 BLACK 1 EA
50124625-002FRE FRE, PCB SA, PM42 LCD 1 EA
236-261-001FRE FRE, PRINT HEAD LIFT SENSOR 1 EA
50124880-001FRE FRE, LCD WINDOW, PM42 1 EA
50125889-001FRE FRE, ASSY, PULLEY DRIVE SUB, PM42

Honeywell Intermec PM43
201-023-001 Button, Assy SVC PM43 BOTAO DE PRINT E FEED PM43
201-025-001 RFID,Default Assy PM43 PLACA DO RADIO RFID KIT PM43
643-165S-001 Window,Media Door Assy Spare PM43 JANELA ACRILICA DA TAMPA LATERAL
201-026-001 Speaker,Assy Spare PM43 ALTO FALANTE - SPEAKER
201-028-001 Pulley,Drive Assy Spare PM23/43 POLIA DE TRAÇÃO PM23/PM43
201-029-001 Gear,Ribbon Reduction Assy Spare PM23/43 ENGRENAGENS DO MECANISMO RIBBON KIT
201-030-002 TPH,Lift Assy PM43 BRACO MAGNETICO DO CABECOTE
234-050S-001 PSU,Assy Spare PM23/43 PLACA FONTE PM23/PM43
355-554-001 Graphic,Overlay Full Touch PM43 ADESIVO DO PAINEL IMPRESSORA LCD
355-578-001 Graphic,Overlay One-Button PM43 ADESIVO DO PAINEL DA PM43 NAO LCD
650-829-001 Spring,Plate1 inch Core PM43 CHAPA METALICA DO ROLETE DE RIBBON
655-321-001 Blt,PlleyTimingT63W7mmL189mmS3M PM23/43 CORREIA DE 189MM PARA IMPRESSORA
655-323-001 Blt,PlleyTimingT54 W7mm162mmS3M PM23/43 CORREIA DE 162MM PARA IMPRESSORA
705-626S-001 Module,UI Full Touch,Assy PM43 MODULO DISPLAY LCD/TOUCH/TECLADO
705-627S-001 One- Button UI, Assy PM43 MODULO SEM DISPLAY - SOMENTE BOTAO
PM43 SPARE PARTS
705-628S-001 Sensor,LSS Upper Assy Spare PM43 SENSOR DE GAP SUPERIOR
710-094S-001 Module,Ribbon RewndSub,Assy Spare PM43 ROLO DIANTEIRO REBOBINADOR DE RIBBON
710-096S-001 Module,Ribbon Supply Sub,Assy Spare PM43 ROLO TRASEIRO DO MECANISMO RIBBON
710-099S-001 Ribbon,AdustSub,Assy Spare PM43 #N/A
710-104S-002 Arm,HP Sub,Assy Spare PM43 BRACO MAGNETICO DO CABECOTE
710-106S-001 TPH,Pressure Adj Assy Spare PM43 MECANISMO AJUSTE DE PRESSAO DO CABEÇOTE
710-107S-001 TPH,Pressure,Adj Sub-Assy,Spare PM43 MECANISMO AJUSTE DE PRESSÃO COM ALAVANCA
710-115S-001 Roller,Tension,Assy Spare PM23/43 SUPORTE DO ROLO TENSIONADOR DO RIBBON
710-118S-002 Roller,Platen,Assy Spare PM43 ROLETE DE BORRACHA
710-119S-001 Guide,Media,Top Dancer,Assy Spare PM43 GUIA DE ETIQUETA PARA IMPRESSORA PM43
710-120S-001 Guide,Media,BottomDancer,Assy Spare PM43 SENSOR DE GAP INFERIOR E GUIA DE ETIQUETA
710-124S-001 Spine, Assy Spare PM43 CARCAÇA CENTRAL PARA IMPRESSORA PM43
710-125S-001 Door,Media,Assy,Spare PM43 TAMPA LATERAL DE ACESSO AOS SUPRIMENTOS
710-128S-001 Cover,EE,Assy Spare PM43 TAMPA LATERAL DE ACESSO À PARTE ELTRONICA
710-139S-001 Dancer,Assy,Spare PM43 TENCIONADOR DE MIDIA
PM43 SPARE PARTS
805-833-001 Antenna,RP-TNC,2.4GHz &5GHz, Dipole PM43 ANTENA DIPOLO
815-079-001 Cover,IO PM43 #N/A
710-168-001 Motor,Stepper Rewind PM43 MOTOR DE PASSO PARA REBOBINADOR PM43
825-218-001 Belt,Rewinder PM43 CORREIA DO REBOBINADOR PM43
236-258-001 Cable,TPH,Power PM43 CABO DE ENERGIA DO CABECOTE
236-263-001 Sensor,RibbonLowCable, Assy PM43 SENSOR DE RIBBON
318-051-001 Battery,Real Time Clock (RTC) Acc, PM43 BATERIA IMPRESSORA (RTC)
234-068S-002 Cable,USB Rec Front Assy PM43 CABO USB FRONTAL
650-799S-001 Bar,Tear Assy Spare PM43 BARRA DE CORTE PARA IMPRESSORA PM43
522-614S-001 Bottom,Base Print Mech Assy Spare PM43 MECANISMO DE IMPRESSÃO SEM BARRA DE CORTE
234-078S-0200 PCB,Feed Button Assy Spare PM23/43 PLACA DO BOTÃO DE FEED PM23/43
234-040S-0500 PCB,UI Full Touch Spare PM23/43 PLACA DE CONTROLE DO DISPLAY, TECLADO E
TOUCH
710-090S-001 Rewinder,Media Internal Sub-Assy PM43 REBOBINADOR DE MÍDIA PARA IMPRESSORA DE
CODIGO DE BARRAS MODELO PM43
643-171S-001 PCB,UI Support Assy Spare PM43 ARMAÇÃO DA PLACA DO FRONTAL
715-616S-001 Sensor,Label Taken Assy Spare PM23/43 SENSOR DE MÍDIA-LABEL TAKEN SENSOR PM23/43
346-314S-001 LCD,Panel Assy Spare PM 23/43 DISPLAY LCD PM23/43
PM43 SPARE PARTS
346-315S-001 Panel,Touch Assy Spare PM23/43 PAINEL DE TOQUES - TOUCH SCREEN
201-043-001 Hanger,Media Assy Service PM43 SUPORTE METALICO DO ROLO DE ETIQUETAS
815-076S-001 Door,Access Spare PM43 PORTA FRONTAL
236-254-001 Cable,MLB PSU Power PM43 CABO CONEXAO PLACA MAE X PLACA FONTE
643-166-001 Handle, PM43 ALÇA PLASTICA DA TAMPA
236-261S-001 Cable,Sensor HL Assy SVC PM23/43 SENSOR DE POSICIONAMENTO DO CABEÇOTE
653-679-001 Plate,Batch PM43 CHAPA DE METAL PARA USO DE REBOBINADOR
657-030-001 Shaft,Media Divert PM43 CILINDRO DE DESVIO DE ETIQUETA
234-053S-0400 PCB,Rewind Moter Driver Assy Spare PM43 PLACA DO REBOBINADOR
710-089S-001 Rewinder,Media Sub Assy Spare PM43 REBOBINADOR DE ETIQUETA PM43
710-112S-001 Motor,Print Mech, Assy, Spare, PM43 MOTOR DE PASSO
710-129S-001 TPH, 203 DPI 4",ASSY SPARE PM43 CABEÇA DE IMPRESSÃO 203 DPI
710-179S-001 TPH, 300DPI 4", ASSY SPARE PM43 CABEÇA DE IMPRESSÃO 300 DPI
710-180S-001 TPH, 406DPI 4", ASSY SPARE PM43 CABEÇA DE IMPRESSÃO 406 DP
