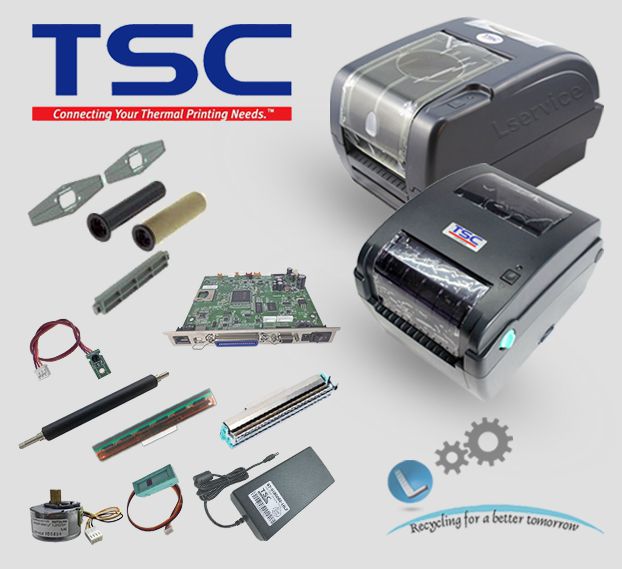

TTP-245C/ TTP-343C/ TTP-244CE
Bar Code Printer Parts List
SC 203dpi Printhead TTP-245C/244CE) ...
TSC 203dpi Printhead TTP-245+,TTP-247) ...
TSC 203dpi Printhead (ME240) ...
TSC 300dpi Printhead TTP-343C. ...
TSC 203dpi Printhead TTP-246M/246M+/246M Pro) ...
TSC 300dpi Printhead TTP-344M Pro) ...
TSC 203dpi Printhead TTP-2410M) ...
TSC 203DPI Printhead TTP-2410M Pro)
TSC 203dpi Printhead TTP-245C, 244CE 98-0330043-01LF
TSC 203dpi Printhead (TTP-245+,TTP-247)
98-0250128-4ALF TSC 203dpi Printhead (ME240)
30-0330021-00LF Top cover open lever (Left)
32-0330009-10LF Shaft for top cover open lever
30-0330020-00LF Top cover open lever (Right)
30-0330007-00LF Hinge holder cover (Left) / Blue
30-0330007-01LF Hinge holder cover (Left) / Beige
30-0330005-00LF Top inner cover / Blue
30-0330005-01LF Top inner cover / Beige
30-0330006-00LF Hinge holder cover (Right)
30-0330006-01LF Hinge holder cover (Right) / Beige
30-0330008-00LF Top cover support
98-0330012-00LF Gap sensor assembly (Receiver)
32-0330002-00LF Shaft for gap sensor assembly
98-0330048-00LF Ribbon base assembly
98-0330028-00LF Media holder (Left) 1 set
98-0330015-00LF Media holder (Right) 1 set
98-0330020-22LF Black mark sensor assembly 1 set
37-1403006-34LF Screw, TP3x6,
30-0330011-10LF Gear cover / Blue,
30-0330011-11LF Gear cover / Beige,
30-0330012-00LF Gear, 42T
30-0330014-00LF Gear, 30T/20T (For 300dpi model)
98-0330017-10LF Head open sensor assembly
37-1202604-G4LF Screw, TP2.6xL4,
30-0330013-00LF Gear, 48T/16T
32-0330003-00LF Gear shaft (203 dpi / 300 dpi),
98-0360014-00LF Platen roller assembly
98-0360014-01LF Linerless platen roller assembly (Option)
30-0330043-00LF Motor support cover / Blue
30-0330043-01LF Motor support cover / Beige
65-0330002-10LF Stepping motor
30-0330015-10LF Media guide (Left),
32-0500005-00LF Black mark sensor fixing plate
30-0500019-00LF Media guide shaft 1 pc
36-0330008-00LF Black Mylar (For black mark sensor slot
21 36-0330009-00LF Black Mylar (For label holder slot),
30-0330016-10LF Media guide (Right),
24 30-0330017-00LF Media holder rack
25 30-0330018-00LF Gear, 12T
26 30-0500022-00LF Media guide adjustment knob
30-0330010-10LF Lower inner cover / Blue
30-0330010-11LF Lower inner cover / Beige
28 30-0330036-01LF Platen bushing,
98-0330025-00LF Gap sensor assembly (Transmitter)
98-0330033-20LF Main board (For TTP-245C model)(4MB flash)
98-0330033-21LF Main board (For TTP-343C model)
98-0330033-22LF Main board (For TTP-244CE model)
98-0330033-23LF Main board + RTC (For TTP-245C model) Factory
98-0330033-24LF Main board + RTC (For TTP-343C model) Option
98-0330034-00LF Main board assembly (For TTP-245C model)
98-0330034-01LF Main board assembly (For TTP-343C model)
98-0330034-02LF Main board assembly (For TTP-244CE model)
62-0250090-10LF Power supply/ CEC (For TTP-245C & TTP-343C) Standard
62-0180060-10LF Power supply/ CEC (For TTP-244CE)
98-0330035-00LF Full cut cutter module / Blue
98-0330035-01LF Partial cut cutter module / Blue
98-0330035-02LF Full cut cutter module / Beige
98-0330035-03LF Partial cut cutter module / Beige
98-0330037-00LF Linerless cutter module / Blue Option
98-0330037-01LF Linerless cutter module / Beige
98-0330036-00LF Peel-off module / Blue Option
98-0330036-01LF Peel-off module / Beig
|
TDP-244
Bar Code Printer Parts List
98-0430002-00LF TOP COVER ASS’Y (NAVY)
98-0430002-01LF TOP COVER ASS’Y (BEIGE)
30-0260002-54LF LOWER COVER (USB/ NAVY)
30-0260002-55LF LOWER COVER (USB/ BEIGE)
30-0260002-57LF LOWER COVER (USB+ RS-232+ Centronics/ NAVY)
30-0260002-50LF LOWER COVER (USB+ RS-232+ Centronics/ BEIGE)
30-0250008-30LF MEMORY CARD COVER (NAVY)
30-0250008-20LF MEMORY CARD COVER (BEIGE)
30-0250026-30LF FRONT PANEL (NAVY)
30-0250026-40LF FRONT PANEL (BEIGE
98-0260154-AJLF MAIN BOARD ASS’Y (USB) Standard
98-0260154-ALLF MAIN BOARD ASS’Y (USB/ For Bluetooth)
98-0260154-AMLF MAIN BOARD ASS’Y (USB/ For internal print server)
98-0260154-ANLF MAIN BOARD ASS’Y (USB/ For Bluetooth+ internal print server)
98-0260154-AALF MAIN BOARD ASS’Y (USB+ RS-232+ Centronics)
80-A3953SB-00LF CUTTER DRIVER IC A3953SB
80-TEA3718-00LF DRIVER IC (For stepping motor)U18,U19
98-0430021-00LF TOP INNER COVER ASSY
98-0430021-02LF TOP INNER COVER ASSY (BEIGE)
98-0430006-00LF TPH MODULE ASS’Y
98-0430204-00LF PRINT HEAD HARNESS ASS’Y
98-0500015-00LF HEAD OPEN MICRO SWITCH ASS’Y
30-0250051-10LF HEAD OPEN MICRO SWITCH FIXING PLATE
98-0500016-00LF GAP SENSOR (RECEIVER) ASS’Y
32-0500001-00LF GAP SENSOR (RECEIVER) FIXING PLATE
10 98-0260011-00LF FEED BUTTON PCB
98-0430022-00LF LOWER INNER COVER ASS’Y
98-0430022-02LF LOWER INNER COVER ASS’Y (BEIGE)
32-0260004-10LF PEELER BAR( 26 degree)
32-0500010-10LF GROUND PLATE FOR PEELER BAR,
98-0260060-20LF GAP(EMITTING)/BLACK MARK SENSOR ASS’Y
32-0500005-00LF GAP/BLACK MARK SENSOR FIXING PLATE
30-0500024-00LF REAR PAPER GUIDE
32-0500015-00LF REAR PAPER GUIDE FIXING PLATE
30-0500022-00LF LABEL GUIDE ADJUSTMENT KNOB
98-0500012-00LF LABEL GUIDE ADJUMENT
98-0500009-00LF PLATEN ASS’Y
36-0500008-10LF PLASTIC LAMINATE (BLACK)
37-1403006-74LF
98-0500033-00LF 1” LABEL SPINDLE ASS’Y
30-0500033-20LF 1” LABEL SPINDLE
98-0250193-00LF FIXING TAB WITH 1.5” CORE ADAPTER,
98-0260012-00LF STEPPING MOTOR ASS’Y (Including stepping motor)
30-0500009-00LF PLATEN BUSHING
98-0260012-00LF STEPPING MOTOR ASS’Y (Including stepping motor) 203 DPI
65-0270001-00LF STEPPING MOTOR WITH 15 GEAR
98-0500022-00LF 3” CORE LABEL ROLLER
98-0430011-00LF PEEL-OFF MODULE ASS’Y (NAVY) Option
98-0260017-01LF PEEL-OFF MODULE ASS’Y (BEIGE)
98-0430013-00LF FULL CUT CUTTER ASS’Y (NAVY) (including cutter driver IC ) Option
98-0260020-00LF FULL CUT CUTTER ASS’Y (BEIGE) (including cutter driver IC )
98-0430014-00LF PARTIAL CUT CUTTER ASS’Y (NAVY) (including cutter driver IC ) Option
98-0260021-00LF PARTIAL CUT CUTTER ASS’Y (BEIGE
62-0180060-33LF POWER SUPPLY/ CEC6
|
