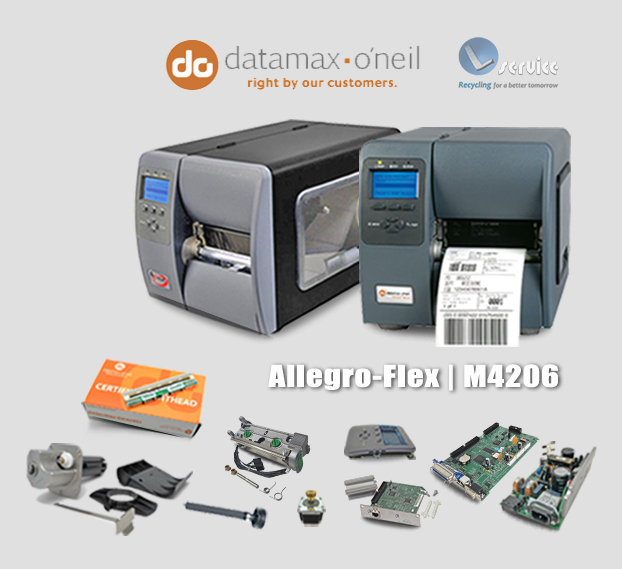

M-4206 M-4308 M-4210
OPT78-2737-01 Peel and Present, 203 DPI – M-4206 & M-4210
OPT78-2482-02 Peel and Present, 300 DPI – M-4308
ROL78-2552-02 Kit, Lower Platen Roller, 203 DPI – M-42xx
ROL78-2552-04 Kit, Lower Platen Roller, 300 DPI – M-4308
DPR51-2366-01 CCA, Peel & Present Sensor
OPT78-2735-02 Internal Rewind Option
DPO11-5613-01 Retainer, Media
DPO15-3114-01 Assy, Media Guide Rewinder
DPO16-2931-01 Bracket Rewind
DPR15-2802-41 (2PK) Clutch Assembly, Media Hub
DPR17-2860-01 (10PK) Gear, Spur, 24t
DPO15-2840-01 Assy, Take Up Hub
OPT78-2697-01 Thermal Transfer Option
DPR15-2776-21 (2PK) Clutch Assembly, Ribbon Rewind
DPR15-3044-01 Assy, Ribbon Supply Hub
DPO15-2840-01 Assy, Take Up Hub
DPO12-3264-01 Cover, Direct Thermal
DPO17-3221-01 (4PK) Spring, Torsion - Supply Hub
PHD20-2261-01 Printhead, IntelliSEAQ, 203DPI – M-4206
PHD20-2260-01 Printhead, IntelliSEAQ, 203DPI – M-4210
PHD20-2263-01 Printhead, IntelliSEAQ, 300DPI – M-4308
DPR32-2527-01 Printhead Power Cable
DPR32-2632-01 Printhead Data Cable
DPR78-2768-01 Kit, Head Pressure Cam and Spring
DPO11-5760-01 (5PK) Guide, Ribbon
DPR78-2718-01 Assy, Media Hanger
DPR78-2717-01 Assy, 3"/1.5" Media Supply Hub
DPR78-2726-01 Assy, 40mm Media Supply Hub
DPO16-2527-01 Supply, Media Retainer
DPO17-2858-01 (2PK) Screw, Knurled M4 X10mm
DPO11-5344-01 Tear Bar
DPO16-2965-01 Spacer

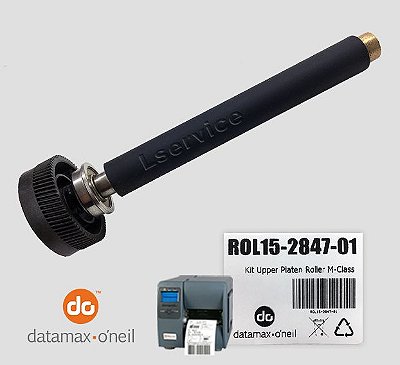

ROL15-2847-01 Kit, Upper Platen Roller, 203 DPI – M-42xx
ROL15-2847-03 Kit, Upper Platen Roller, 300 DPI – M-4308
DPR17-3040-01 (10PK) Spring, Head Lift, Front

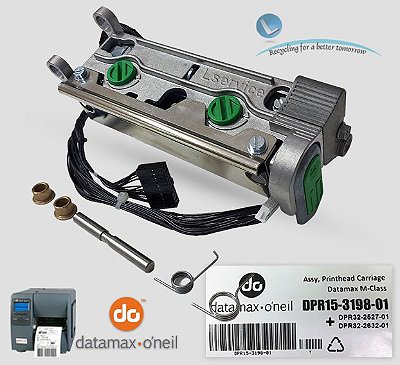

DPR15-3198-01 Assy, Printhead Carriage
DPR17-3039-01 (10PK) Spring, Head Lift, Rear
DPO16-3203-01 Media Guide
DPR15-3204-01 Kit, Bearing Retainer
DPO15-3205-01 Kit, M3 X 6mm Thumbscrew
DPR78-2720-02 Board, Main, 8MB Flash – M-4206
DPR78-2722-01 Board, Main, 8MB Flash – M-4210 & M-4308
DPR78-2722-02 Board, Main, 64MB Flash – M-4210 & M-4308
DPR51-2357-00 Board, Power Supply
DPR78-2764-01 Kit, Drive Gear
DPR12-2905-01 (25PK) Post, Idler
DPR78-2765-01 Kit, Stepper Motor, M-42xx
DPR78-2765-02 Kit, Stepper Motor, M-43xx
DPO11-5378-01 (2/PK) Cover Plate
|
I-Class Mark II ( I-4212e, I-4310e)
DPR15-3240-01 Cover Assembly, Electronics
2 DPO16-3312-01 Cover, Media, Front
3 DPO11-5829-01 Cover, Media, Top
4 DPO16-3311-01 Window, Media Cover
5 DPO16-2556-02 Cover, Media, Rear
6 DPO16-2551-02 Cover, Media Roll
7 DPO16-3314-01 Cover, Filler Block
8 DPR16-3313-01 Cover, Front Panel
9 DPR16-2581-02 Cover, Sensor
10 DPO14-3016-01 (2PK) D-O IM2 Nameplate
11 DPR12-3349-01 Baseplate, I-Class
DPR15-3051-01 Assy, Printhead Carriage Printhead not included
2 DPR78-2770-01 Kit, Ribbon Idler Bushing Retainer
3 ROL15-2761-04 Kit, Platen Roller
4 DPO12-2896-01 Bracket, Retainer, Platen
5 DPR17-2836-01 Spring, Head Lift
6 DPR12-3052-01 (2PK) Shaft, Ribbon Idler
7 DPO12-2894-01 Block Mtg Platen, Machined
8 DPO11-5219-01 Tear Bar
9 DPO17-2858-01 (2PK) Screw, Knurled
DPR24-2504-01 Assy, Media Sensor
2 DPO78-2771-01 Kit, Media Guide
3 DPO32-2440-01 (5PK) Cable, Flex, Media Sensor
DPR78-2772-01 Kit, Drive Gear Gears only
2 DPR78-2773-04 Kit, Stepper Motor
3 DPR51-2308-00 Power Supply
4 DPR51-2480-00 Board, Main, I-Class M2
5 DPO78-2901-01 Cover Plate Kit
6 DPR16-3093-01 Cable Clamp, Flat
7 DPR12-3341-01 (2PK) Guide, Media Sensor
DPR78-2902-01 Kit, Display Board and Bezel
2 DPR32-2674-01 Cable, Front Panel
DPR78-2718-01 Assy, Media Hanger
2 DPR78-2330-01 Assy, 3"/1.5" Media Supply Hub
3 DPO16-2627-01 Adapter, Hub 3”
4 DPR78-2367-01 Assy, 40mm Media Supply Hub
5 DPO16-2527-01 Supply, Media Retaine
DPO11-5180-01 (1PK) Guide, Ribbon
2 DPR78-2781-01 Kit, Head Pressure Cam and Spring
3 DPR78-2782-01 Kit, Media Width Cam
4 DPR78-2783-01 (2PK) Head Alignment Spring
5 DPO15-3052-01 Latch Assembly
PHD20-2278-01 Printhead, Smartchip, 203DPI – I-4212e
PHD20-2279-01 Printhead, Smartchip, 300DPI – I-4310e
PHD20-2281-01 Printhead, Smartchip, 600DPI – I-4606e
2 DPO32-2416-01 Printhead Power Cable
3 DPR32-2675-01 Printhead Data Cable
4 DPR32-2433-02 Option Port Cable
5 DPO32-2459-01 Main Logic Data Cable
6 DPO32-2458-01 Main Logic to Power Supply Cable
OPT78-2302-01 Internal Rewind Option, I-Class M2
2 DPO11-5339-01 (2PK) Retainer, Media
3 DPO15-2864-01 Assy, Media Guide Rewinder
4 DPO16-2786-01 Bracket Rewind
5 DPO78-2303-01 Cover, Rewind
6 DPR15-2764-01 (2PK) Assy, Take Up Hub
7 DPR17-2860-01 (10) Gear, Spur, 24t
8 DPR15-2802-41 (2PK) Clutch Assembly, Media Hub
OPT78-2905-01 Peel and Present Option, I-Class M2
2 DPR78-2903-01 Peel Gear Platen Kit
3 DPR78-2904-01 Peel Roller Kit
4 DPR16-2970-01 (2PK) Peel and Present Latch
OPT78-2887-03 Wireless LAN Option
2 DPO17-3212-02 Antenna, Right Angle
3 DPR32-2639-01 Cable, Coaxial, SMA/U.FL
4 OPT78-2887-01 Wired LAN Option
5 DPO130944 (50PK) Nut M3 X .5
6 DPO10-3198-01 (10PK) Standoff, M/M, M3 X 0.5, 6mm Hex
OPT78-2295-02 Standard Cutter Option
2 DPO32-2462-01 (5PK) Cutter Cable
3 DPR51-2283-00 Cutter Board
OPT15-2872-01 Supply Hub Media Retainer Kit
|
